Kağıt Makinesi Dokuma Kurutma Kumaşları

Qingdao Star Machine, Endüstriyel Kağıt Makinesi Dokuma Kurutma Kumaşları sağlar. Profesyonel bir Çinli üretici olarak, ürünlerimizin müşterilerimizin seçebileceği farklı türlere sahiptir. Dokuma örgü kemerlerimiz, çeşitli çalışma koşullarında müşterilerin ihtiyaçlarını karşılayabilir ve üretim kayıplarını azaltabilir.

Talep Gönder

Ürün Açıklaması

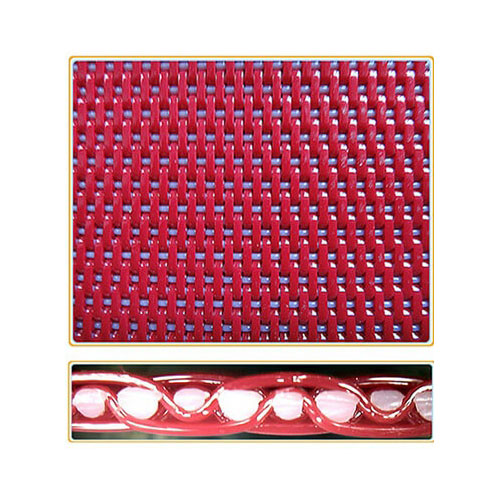

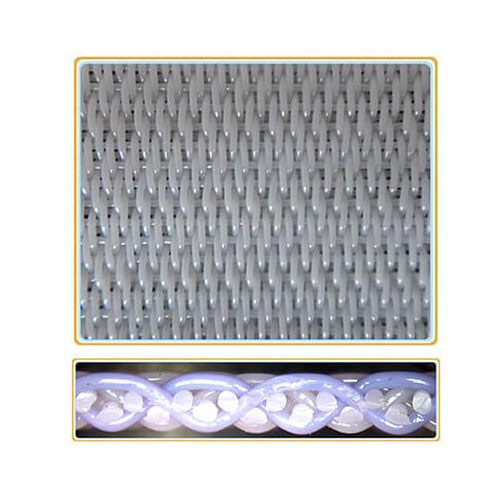

SMCC high quality paper machine braided dryer fabric plays an important role in paper making process, especially in a paper machine's dryer process. Paper Machine Woven Dryer Fabric is a kind of fabric specially used for paper machine dryer or Paper Dryer Fabrics, also known as canvas or woven Dryer Fabrics.

Paper Machine Woven Dryer Fabrics can be divided into single ply semi-woven dryer fabric, double ply woven dryer fabric, flat plate dryer fabric, flat plate double pass dryer fabric and special material dryer fabric by type.

Three-shed and four-shed single layer semi-dryer Paper Machine Woven Dryer Fabrics for non-woven cloth drying machines are commonly used in the process of drying cultural paper, printing paper and wrapping paper. The layered structure of these semi-dryer fabrics effectively supports the paper and ensures the uniformity of the dryer, thus improving the quality and consistency of the paper.

Flat and double warp Paper Machine Woven Dryer Fabrics are typically used in the first few heated trays of the dryer section, where they provide a uniform heating and drying environment for high quality paper, ensuring surface quality and flatness.

Paper Machine Woven Dryer Fabrics made of special materials is high temperature, abrasion and aging resistant and suitable for long term use in paper machine dryers. They can withstand high temperatures and maintain a stable structure to ensure paper quality and productivity.

Product Models

Paper Machine Woven Dryer Fabrics

Weaving Series & Types	Wire Diameter(mm)		Density(wire/cm)		Strength(N/cm)	Air Permeability (m3/m2h)
Weaving Series & Types	Warp	Weft	Warp	Weft	Area of the surface	Air Permeability (m3/m2h)
3-shed series	0.50	0.50	24	12	≥2000	8000±500
4-shed series	0.50	0.50	22	12	≥1900	13000±500
	0.50	0.50	24	12	≥2000	12000±500
	0.50	0.50	26	12	≥2100	11000±500
Round Wire Fabric	0.50	0.50	22	12.4	≥2000	6800±500
Flat Wire Fabric	0.38*0.58	0.50	16.66	15	≥2000	5954±500
	0.38*0.58	0.40/0.60	18	14.66	≥2000	4800±500
	0.5*0.75	0.60/0.40	14.66	12.66	≥2100	6000±500
	0.25*1.05	0.60/0.90	9	7	≥2200	2100±500

Product Advantage

The Paper Machine Woven dryer fabrics offered by SMCC have the following advantages:

1. Flat and delicate surface, paper is easy to peel off;

2. Superior abrasion resistance and long service life;

3. Good dewatering performance, fast cleaning.
